Y-STRAINERS

Features

  • Threads according to ASME B1.20.1 (NPT), DIN 2999 and BS 21, ISO 228/1 and ISO 7/1
  • Investment casting
  • Body in ASTM A351-CF8M (1.4408), screen in stainless SUS304
  • PTFE gasket
  • Testing and inspection to API 598
  • Sizes: DN8 – DN80 (1/4″ – 3″)
Details – technical data

Standard

Applicable standard
Test and inspectionAPI 598

Materials

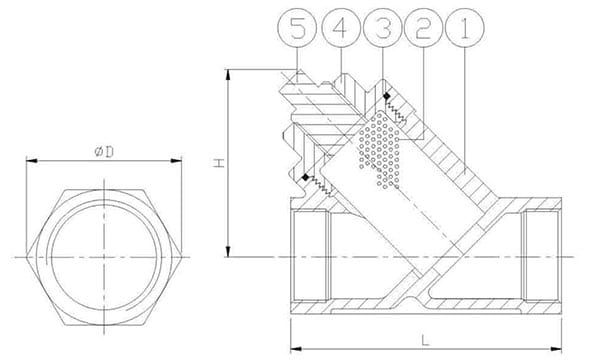

ItemPartMaterial
1BodyASTM A351-CF8M / 1.4408
2ScreenSUS304
3GasketPTFE
4CapASTM A351-CF8M
5PlugSUS304

Dimensions – metric (mm)

DNLHDWeight (kg)
86545310,26
106545310,23
156545310,24
208053360,36
258065450,69
3210570500,86
4012080591,021
50140103751,88
65190102,795,45,14
80140141,9111,57,26

Dimensions – imperial (in)

NPSLHDWeight (lb)
1/4″2,561,771,220,57
3/8″2,561,771,220,51
1/2″2,561,771,220,53
3/4″3,152,091,420,79
1″3,152,561,771,52
1-1/4″4,132,761,971,9
1-1/2″4,723,152,322,25
2″5,514,062,954,14
2-1/2″7,484,043,7611,33
3″5,515,594,3916,01
