BUTTERFLY VALVE
Features
- Weldable butterfly valves, 12-position handle
- Grade AISI 304 and AISI 316
- Sizes: DIN DN25 – DN100; SMS Ø25 – Ø101.6
- EPDM seat
- Low opening and closing torque
Details – technical data
Parts
| Item | Name |
|---|---|
| 1 | Knob |
| 2 | Steel bar |
| 3 | Spring (stainless) |
| 4 | Stainless part |
| 5 | Holder |
| 6 | Body |
| 7 | Disc |
| 8 | EPDM seat |
| 9 | Screw |

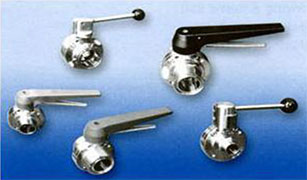

Version with 3A clamp ends and stainless 4-position handle
Torque for full opening/closing
| Size | Torque |
|---|---|
| 1″ | < 1 kgm |
| 1,5″ | < 1 kgm |
| 2″ | 1,3 kgm |
| 2,5″ | 1,5 kgm |
| 3″ | 2,0 kgm |
| 4″ | 3,1 kgm |
Construction
- Body: SS304 / 316 / 316L, made on precision CNC milling machines. The body is replaceable and the operating torque is low.
- Connections: to BS, SMS, DIN and 3A standards – weld ends, male/male thread or clamp.
- Disc: fully machined, roughness Ra below 0.6 μm. Disc head 9.5 mm, 8 × 12 mm or 12 × 12 mm – for the US and European markets. Electropolished or PTFE coated on request.
- Handle: glass-fibre reinforced nylon or stainless steel, with gripper – pull or press type. Versions from 2 positions upwards.
12-position handle
Handle in nylon 6 reinforced with glass fibre or in stainless steel 304, with a stainless gripper bar and notch plate – easy to operate with secure locking. Precise design, suitable for adding your logo. Fits ⌀9.4 × 9.4, ⌀12 × 8 or ⌀12 × 12 disc heads – for US and European type butterfly valves.
4-position handle
Handle fully in stainless steel 304 with a phenolic grip and 4 positions, machined and polished for easy operation and secure locking. Fits ⌀9.4 × 9.4, ⌀12 × 8 or ⌀12 × 12 disc heads – for US and European type butterfly valves.
